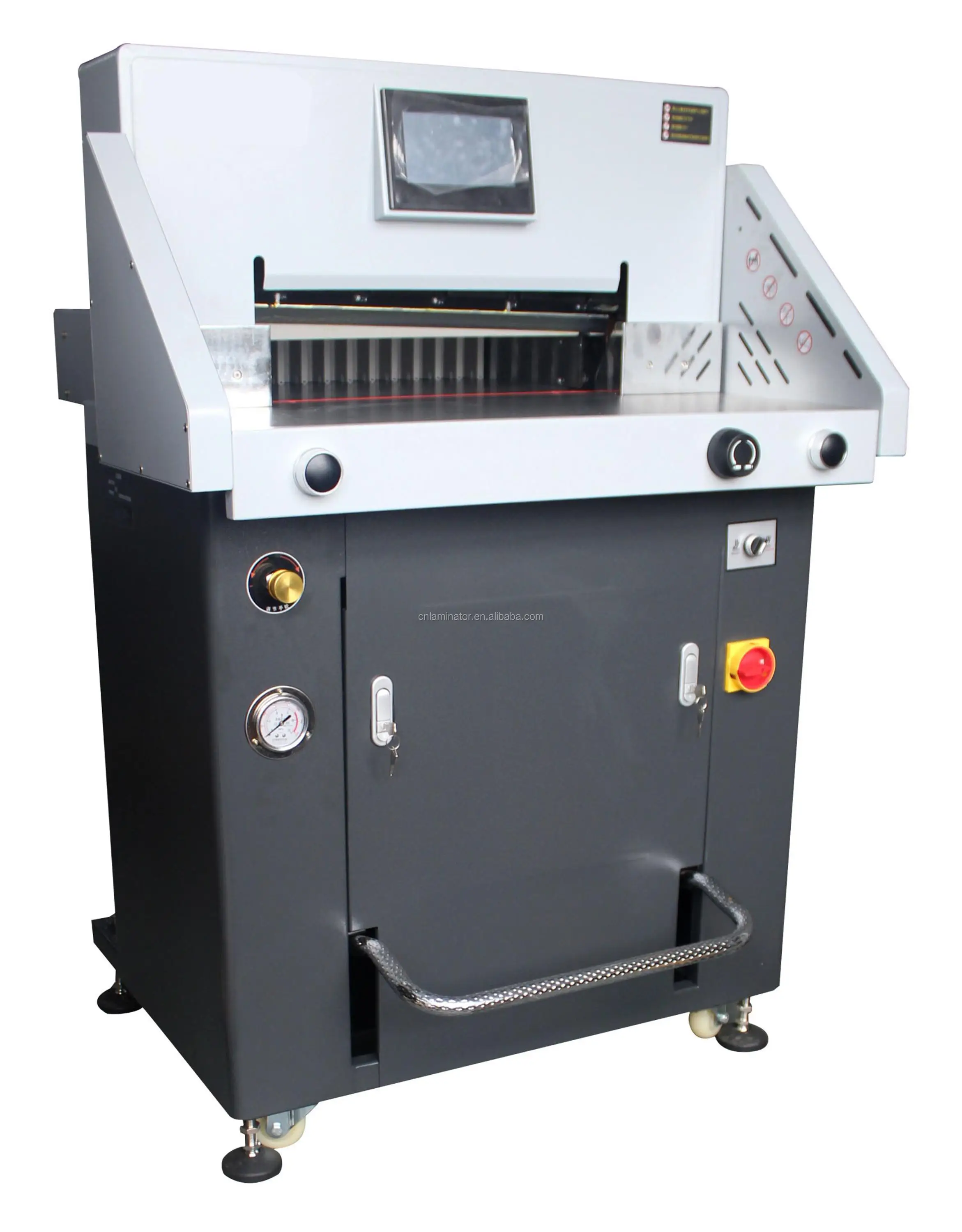

520mm 20inch Hydraulic Paper Cutter H520RT cutting 80mm thickness

FOB Reference Price:Get Latest Price
$2,500.00 - $3,500.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Paper Cutting Machine
Dimension(L*W*H):
1550x1200x1460mm
Weight:
500KG
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Befitter
Model Number:
H520RT
Voltage:
220v/110v± 10% 50Hz(60Hz)
Certification:
CE Certificate
Computerized:
Yes
Power(W):
2.8KW
Blade Material:
Stainless Steel
Driven Type:
Hydraulic
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1pcs/wooden case
Port
Shanghai
Lead Time :
within 7 days
Product Description

 Feasures


1.Double leader and ball screws for paper pushing

Double lead screws and ball screws for pushing paper platform without slot design, to make the pushing force more equal and durable, It matches up the servo motor control design, cutting precision is better, and increasing the speed of pushing paper.


2.Swing arm design of blade carrier patented technology
The design makes the roller slot not easy to wear and tear, and can adjust the gap of blade carrier to ensure cutting accuracy

3.Inclined blade cutting patented technology
Any thinck paper can be cut smooth and easily with inclined blade design

4.Leak-Proof design
Make the cylinder in the state of seal and is no any leak.


5. Double hydraulic with strong power system
Taiwan motor with strong power, imported hydraulic components for ensuring quality, with external knob to adjust pressure of paper clamp.



6. 4.8'' large LCD touch screen
All the adjustment forcan be adjusted by setting the program, 100 series programs and 100 cuts for each series programs. Humanization design makes the operation easier and more convenient.


7.PLC control board design
(1) It is easy to use and simple to program
(2)It has anti-interference ability and reliability.
(3) and easy to replace


9.  Plate with Aluminum hard anodizing process
 The new aluminum panels, are light smoothed and wearable


10.Mechanical pedal
Pressure paper proffread position,easy and convenient.




Specification



Model

H520RT

Max. cutting size

520mm

Min.cutting size

30mm

Cutting thickness

80mm

Cutting precision

± 0.2mm

Pressing paper mode

Hydraulic+Mechanical Pedal

Pushing page mode

Programmable

Program

yes

Display

4.8Touch screen

Power

 220v/110v± 10% 50Hz(60Hz),2.8KW

Machine net weight

450kg

Machine Dimension(H*D*W)

1280x1010x1430mm
